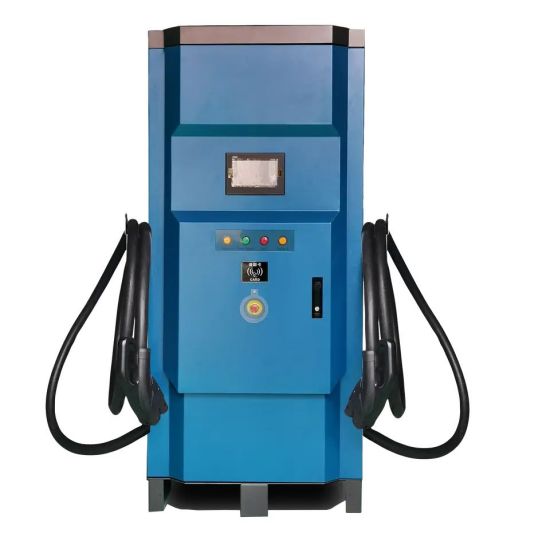

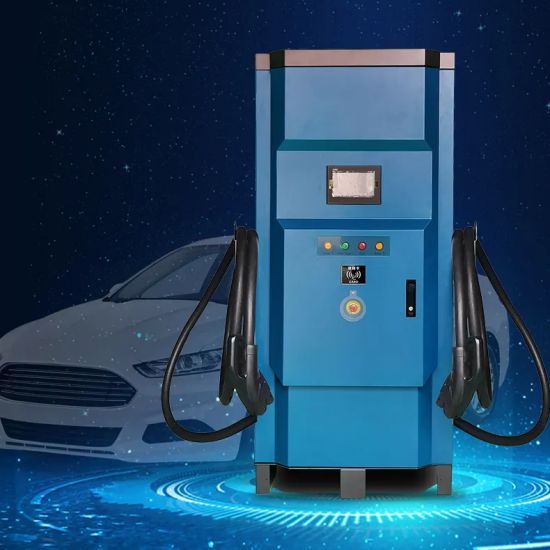

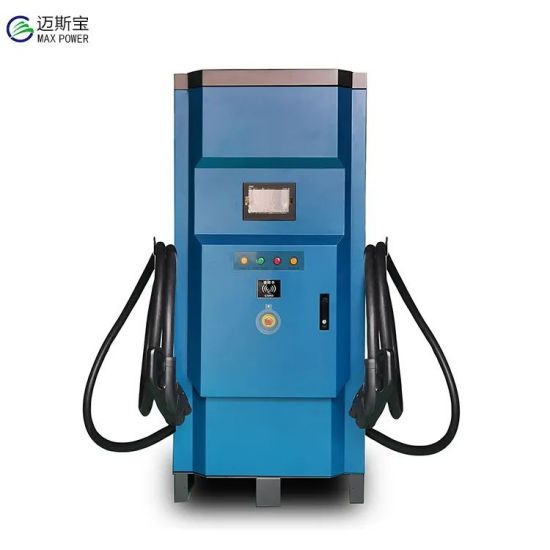

120kw new energy floor-standing electric vehicle charger commercial DC fast charging station
120kw new energy floor-standing electric vehicle charger commercial DC fast charging station
Product name : 120kw new energy floor-standing electric vehicle charger commercial DC fast charging station
Model No. : YS23092108
| Type | ev charger |
| Charging Port | dc |
| Connection | ac |
| Combination | AUX Port |
| Voltage | 380v |
| Model Number | FC120750 |
| Input Voltage | 380 VAC ± 15% |
| Rated Power | 120KW |
| Input Current | 190A |
| Output Current Range | 0~ 250A |
| Output Voltage Range | 200~750VDC (200~1000VDC in constant power mode) |
| Size | 1750mm*620mm*780mm |
| IP Level | IP54 |
| Interface | 7 inchs colorful touch screen+IC Card |
| Weight | 230KG |
EV CHARGER 60KW-150KW
*Smart DC charger is a configurable-multiple-outlet high-power charger which is suitable for CBD or public areas.
*The product consists of human-machine interaction part, power module, internal control system, communication module and charging cable assembly.
Features：
*Modular design including control system, power source system, distributed power system, power factor system
*Auto sleep mode after fully charged with low standby power consumption at <5W
*Remote firmware upgrade with APP
*Remote power module upgrade
*Remote diagnostic function simplifis data collection and analysis process
*IP54 protection and 1K10 vandal-proof enclosure

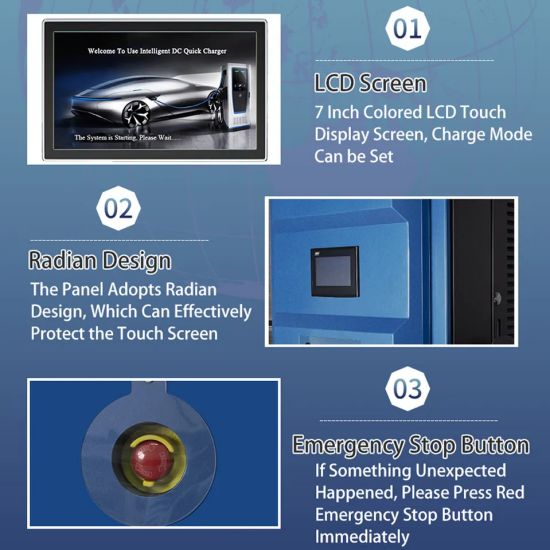

*7" colored touch LCD display for easy configuration.
Compliance Standard：
*IEC 61851 Electric vehicle conductive charging system
*IEC 62196 plugs, socket-outlets, vehicle connectors and vehicle inlets-conductive carging of electric vehicle
*DIN 70121 Electromobility-Digital communication between a d.c. EV charging station and an electric vehicle for control of d.c. charging in the combined charging system
*ISO 15118 Road vehicles-Vehicle-to-Grid Communication Interface
